SX-2A Semi Automatic Bottle Container Tube Silk Screen Printing Machine

Brand Name : SX
Model Number : SX-3A
Certification : CE ISO
Place of Origin : CHINA
MOQ : 1 set
Price : Negociation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 50 set per year
Delivery Time : 5 days after receiving downpayment
Packaging Details : Vacuum wooden package
Color : Single color
Drive System : Pneumatic
Maximum Print Area Round : 75mm (2.95") Ø
Maximum Print Area Oval : 230mm (9.06") Arc Length
Dimensions (L x W x H) : 830 x 750 x 1,270mm
Machine Weight : 135 kg (297.62 lbs)
Contact Now

Semi Automatic Bottle Container Tube Silk Screen Printing Machine

Description:
SX-2A semi-automatic bottle and container screen printer is a well designed and versatile machine. The SX-2A can screen print on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.

Features:
The SX-2A features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the SX-2A theperfect all around universal screen printing press.
•Electro-pneumatic controlled
•Programmable set-up
•Pneumatic controlled with shock absorbers
•Vertical head lift with up/down lock
•Linear ball bearings on hardened shafts
•Foot switch controlled
•Squeegee tilt, skew, and height adjustments
•Screen frame angle adjustment
•Universal fixture bar for mounting custom tooling
•Bottle inflation system with regulator
•Bottle inflation is synchronized with print cycle
•Regulated squeegee pressure with pressure gauge
•Floor levelers & casters

Specifications:

Technical DataSX-2A
Drive System:Pneumatic
Frame Up/Down Stroke:100mm (3.94")
Maximum Print Area Round:
Maximum Print Area Oval:
Maximum Print Area Flat:
75mm (2.95") Ø
230mm (9.06") Arc Length
150 x 220mm (5.91" x 8.66")
Working Table Size:200 x 300mm (7.87" x 11.81")
Table Adjustment:X,Y +/- 15mm / 15 degrees
Maximum Screen Frame Size:280 x 430mm
(11.02" x 16.93")
Screen Frame Thickness:18 - 25mm (.71" - .98")
Squeegee Angle:0-15 degrees
Printing Cycle Speed:1,980 cycles/hr
Squeegee Speed:33/min
Squeegee Pressure:2 - 4 Bar
Electric Source:110V/220V 50-60Hz 50W
Air Pressure Input:80 psi
Air Consumption:0.7 L/cycle
Machine Weight:135 kg (297.62 lbs)
Machine Weight (including crating):205 kg (451.95 lbs)
Dimensions (L x W x H):830 x 750 x 1,270mm
(32.68" x 29.53" x 50")
Crate Dimensions:980 x 870 x 1,410mm
(38.58" x 34.25" x 55.51")


Samples:


Product Tags:

semi automatic screen printer



flat screen printing machine


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

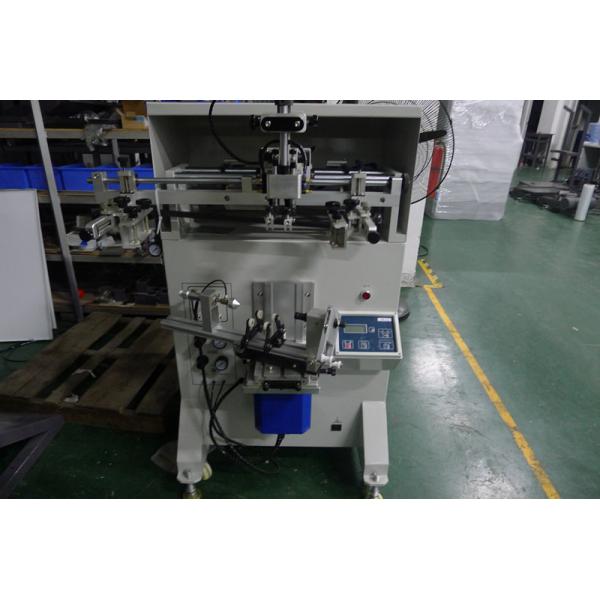

SX-2A Semi Automatic Bottle Container Tube Silk Screen Printing Machine Images
